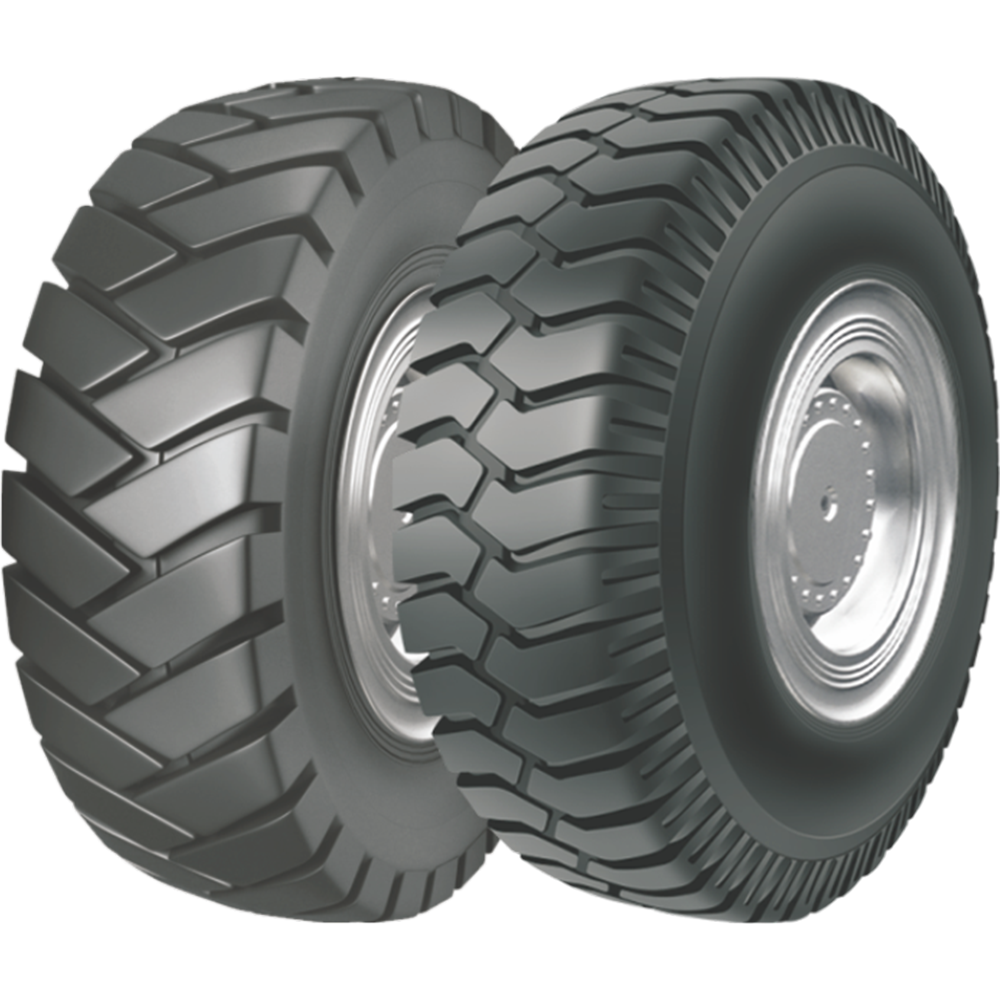

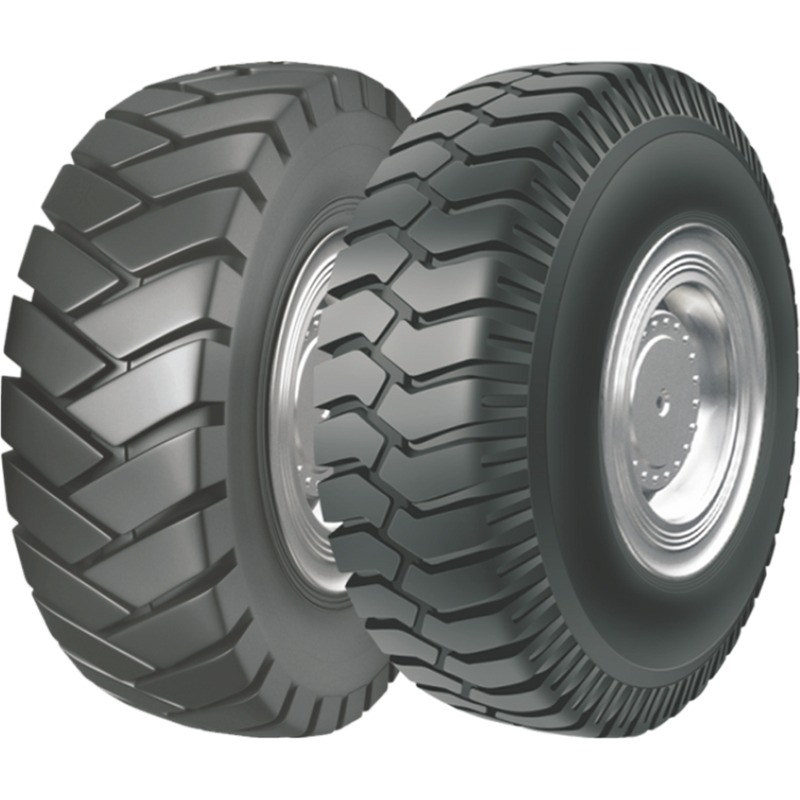

AN378A&B
Interlocking herringbone directional lugs on the left provide strong forward traction on soft surfaces.
Dense zigzag central tread bars on the right optimize surface stability and resist uneven wear.
Deep open shoulder channels across both designs efficiently expel loose dirt and debris.
Dense zigzag central tread bars on the right optimize surface stability and resist uneven wear.
Deep open shoulder channels across both designs efficiently expel loose dirt and debris.
-
Please contact us for more details.
| Quantity: | |
|---|---|
| SIZE | PR | Standard Rim | Section Width (mm) | Overall Diameter (mm) | Max. Load(kg) | Pressure (kPa) | ||
| 14.00-20 | 20 | 10.00/1.5 | 375 | 1265 | 4375 | 7500 | 525 | 700 |
| 14.00-24 | 32 | 10 | 375 | 1370 | 6050 | 700 | ||
| 13.00-25 | 32 | 10.00/1.5 | 350 | 1300 | 5500 | 800 | ||
| 14.00-25 | 36 | 10.00/1.5 | 375 | 1370 | 6600 | 750 | ||
