How to Read ATV Tire Size Numbers
ATV tire size numbers describe the tire’s main physical dimensions. They help you identify the outside diameter, section width, and wheel diameter.
However, the numbers do not always follow one single format. A marking such as 25x8-12 is read differently from 6-12 or 205/80-12.
Understanding the notation helps you avoid incorrect fitment, quotation errors, and unsuitable replacements. It also makes communication with an ATV tire supplier much easier.
This guide explains how to read common ATV tire size numbers. It focuses on size notation and fitment meaning, not tire pressure, installation, or repair.
Quick Answer
A common ATV tire size such as 25x8-12 usually means:
25: approximate overall tire diameter in inches.
8: approximate section width in inches.
12: wheel or rim diameter in inches.
A size such as 6-12 usually means:
6: approximate section width in inches.
12: rim diameter in inches.
The overall diameter is not fully shown in this format.
A metric marking such as 205/80-12 usually indicates:
205: section width in millimeters.
80: aspect ratio.
12: rim diameter in inches.
Always confirm the complete specification before ordering. Size numbers alone do not confirm load capacity, clearance, construction, or vehicle compatibility.
Where Are ATV Tire Size Numbers Located?
The size is usually molded into the tire sidewall.
You may find it near other markings, including:
Brand name.
Product pattern or model name.
Ply rating.
Load information.
Maximum pressure.
Direction arrows.
Tube or tubeless markings.
Certification or compliance markings.
The size marking may be raised, recessed, or printed on a label. Dirt and wear can make the numbers difficult to read.
Clean the sidewall carefully before recording the marking. Check both sides if one side is less visible.
If the marking remains unclear, photograph the complete sidewall. Include the rim and tread position when contacting a supplier.

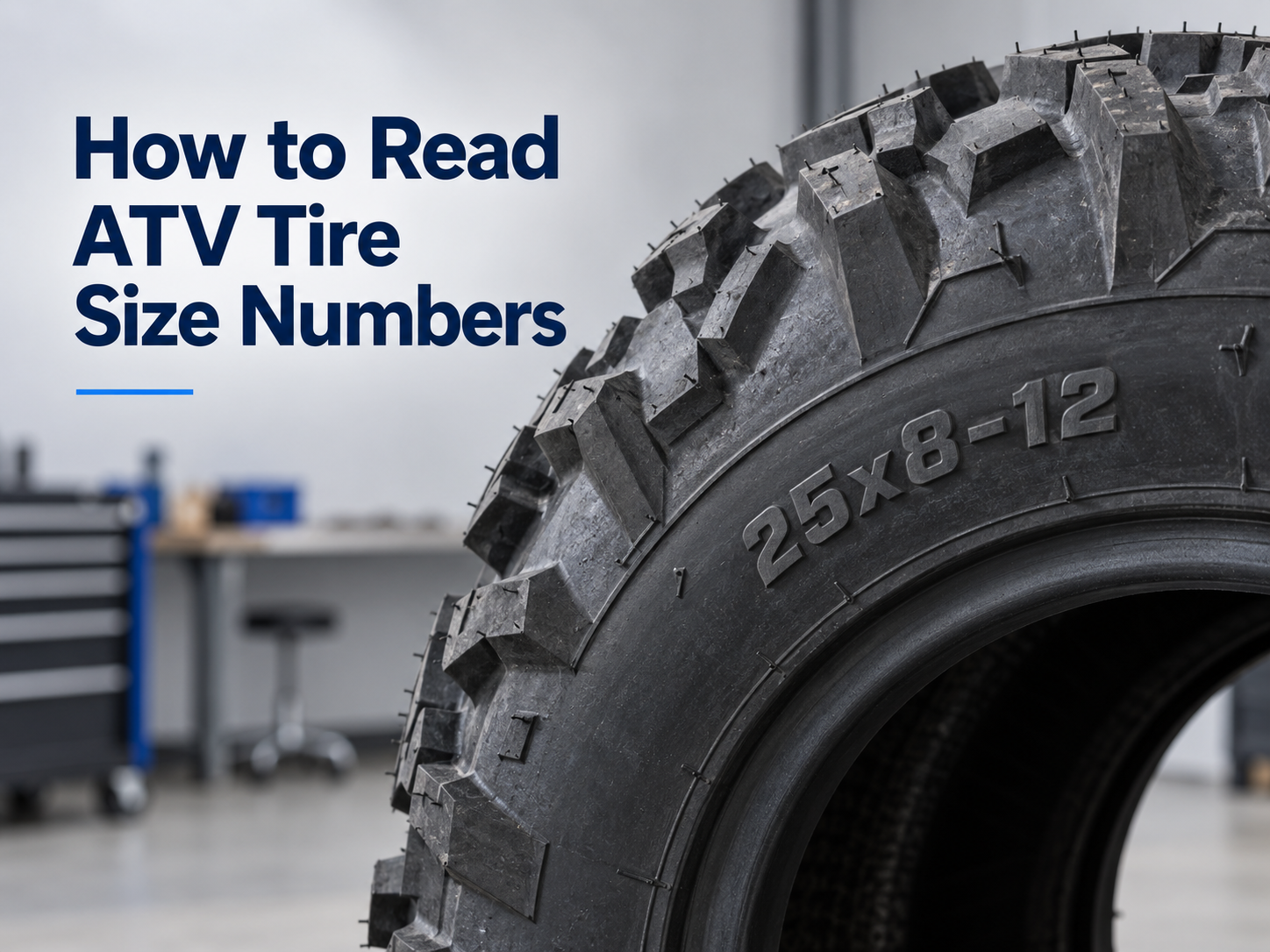

How To Read The Common 25x8-12 ATV Tire Format
The 25x8-12 format is widely used for ATV tires.
The three parts describe the tire’s approximate diameter, width, and rim diameter.
Part of marking | Meaning | Example |
|---|---|---|
First number | Overall tire diameter | 25 inches |
Middle number | Section width | 8 inches |
Final number | Rim diameter | 12 inches |
Therefore, 25x8-12 generally means a tire approximately 25 inches tall, approximately 8 inches wide, and designed for a 12-inch rim.
The x separates the overall diameter from the width. The final number after the hyphen identifies the wheel diameter.
This format is common on many recreational and utility ATV tires.
What Does The First Number Mean?
The first number usually represents the approximate overall diameter.
In 25x8-12, the tire is approximately 25 inches in diameter. This measurement is taken from the ground to the top of the tire when mounted and inflated under specified conditions.
Actual measured diameter may vary between products. Tread depth, construction, load, pressure, and rim width can affect the final dimension.
What Does The Middle Number Mean?
The middle number usually represents the approximate section width.
In 25x8-12, the nominal section width is approximately 8 inches.
The actual mounted width can change with the rim width and tire construction. This is why a nominal width should not be treated as an exact clearance measurement.
What Does The Final Number Mean?
The final number represents the rim diameter.
In 25x8-12, the tire is designed for a 12-inch rim.
The rim diameter must match the tire. A tire designed for a 12-inch wheel cannot be installed on a 10-inch or 14-inch rim.
How To Read 25x10-12 ATV Tire Sizes
A marking such as 25x10-12 follows the same basic format.
25: approximate overall diameter in inches.
10: approximate section width in inches.
12: rim diameter in inches.
Compared with 25x8-12, this tire has a larger nominal width. The diameter and rim size remain the same.
That difference can affect:
Wheel-well clearance.
Sidewall position.
Ground contact.
Steering response.
Flotation.
Vehicle handling.
Do not replace an 8-inch-wide tire with a 10-inch-wide tire without checking the vehicle and wheel requirements.
A wider tire may require additional clearance. It may also change the way the ATV responds during steering and acceleration.
How To Read 6-12 ATV Tire Sizes
Some ATV and utility tire sizes use a two-part format, such as 6-12.
This format usually means:
6: approximate section width in inches.
12: rim diameter in inches.
Unlike 25x8-12, the overall tire diameter is not fully expressed in the marking.
The total diameter depends on the tire’s construction and profile. For this reason, the sidewall marking alone may not provide enough information for replacement selection.
When requesting a tire in this format, also ask for:
Overall diameter.
Section width.
Recommended rim.
Load capacity.
Intended axle position.
Application type.
This information is especially important for utility, agricultural, and equipment-related tire programs.
How To Read Agricultural-Style ATV Tire Numbers
Some utility and agricultural tire products use formats such as 9.5-16 or 12.4-16.
These markings do not follow the same three-part format as 25x8-12.
They generally indicate:
The first number as approximate section width.
The second number as rim diameter.
The overall diameter is usually confirmed separately through the product specification.
This distinction matters when a supplier offers both conventional ATV tires and agricultural-style utility tires. The same reading method should not be applied to every format.
For example, 9.5-16 should not be interpreted as a 9.5-inch diameter tire. The first number normally refers to approximate width in this format.
Ask the supplier to confirm the notation before comparing products from different tire categories.
How To Read Metric ATV Tire Sizes
Some ATV tires use a metric or mixed sizing format.
A common example is 205/80-12.
The numbers generally represent:
205: nominal section width in millimeters.
80: aspect ratio.
12: rim diameter in inches.
The aspect ratio describes the sidewall height compared with the section width. It is expressed as a percentage.
A marking such as 205/80R12 may use the letter R to indicate radial construction. However, the exact marking system can vary by product and manufacturer.
Do not assume that every number separated by a slash has the same meaning. Confirm the manufacturer’s specification table when the marking is unfamiliar.
What Is The Difference Between Nominal And Actual Tire Size?
Nominal size is the size stated in the sidewall marking.
Actual size is the measured dimension of the mounted tire under specific conditions.
These two values may differ slightly because of:
Rim width.
Inflation pressure.
Applied load.
Tread design.
Casing construction.
Measurement method.
Manufacturing tolerance.
For example, a tire marked 25x8-12 may not measure exactly 25 inches tall in every setup.
This does not mean the marking is incorrect. It means nominal dimensions should be used together with the supplier’s technical data.
When clearance is limited, request the actual overall diameter and mounted section width.
What Do ATV Tire Size Numbers Not Tell You?
ATV tire size numbers describe dimensions. They do not provide every important product detail.
The marking alone does not confirm:
Maximum load.
Recommended pressure.
Ply rating.
Bias or radial construction.
Tread application.
Front or rear fitment.
Tube or tubeless configuration.
Sidewall protection.
Compound.
Certification status.
These details should be confirmed separately.
A tire with the correct nominal size may still be unsuitable for the vehicle. The load, tread, construction, and wheel compatibility must also match.
What Does Ply Rating Mean Beside The Tire Size?
Ply rating is not another size measurement.
It generally describes a tire’s load-carrying classification or construction strength. It should not be read as the number of physical layers inside the tire.
For example, a marking such as 6PR appears alongside the size. It provides additional product information, but it does not change the meaning of 25x8-12.
Ply rating should be evaluated with the vehicle load and application. A separate article can explain ATV tire ply ratings in greater detail.
How Do You Use ATV Tire Size Numbers For Fitment?
Use the size marking as the starting point, not the final decision.
First, record the complete sidewall size. Then compare it with the vehicle manufacturer’s approved range or the supplier’s fitment data.
Check the following points:
Match The Rim Diameter
The final number must match the rim diameter.
A 12-inch tire requires a compatible 12-inch rim. The wheel diameter cannot be changed by adjusting pressure or mounting technique.
Check Overall Diameter
Overall diameter affects vehicle clearance and operating geometry.
A larger diameter may contact suspension parts, fenders, or other components. It may also change the relationship between the engine, axle, and ground speed.
Check Section Width
Section width affects side clearance and vehicle response.
A wider tire may improve surface contact in some applications. It may also create interference or change steering behavior.
Confirm Front Or Rear Position
Many ATVs use different front and rear sizes.
Do not assume that a tire marked for the rear axle can be installed on the front. Position, tread direction, steering, load, and drivetrain requirements may differ.
Check Load Requirements
The size does not confirm whether the tire can support the vehicle and its working load.
Provide the supplier with the ATV weight, rider or cargo load, towing requirement, and expected work conditions.
How Should Distributors Record ATV Tire Sizes?
Distributors should record more than the short size code.
A useful product record should include:
Information | Example |
|---|---|
Sidewall size | 25x8-12 |
Nominal diameter | 25 inches |
Nominal width | 8 inches |
Rim diameter | 12 inches |
Position | Front or rear |
Construction | Bias or radial |
Load data | Confirm with supplier |
Pressure data | Confirm with supplier |
Application | Utility, trail, mud, sand, or mixed use |
This format reduces mistakes during quotations and repeat orders.
It also helps sales teams distinguish products with similar size numbers but different tread patterns or load capabilities.
What Information Should You Send An ATV Tire Supplier?
Send a clear photograph of the existing tire sidewall whenever possible.
Also provide:
Complete size marking.
Vehicle make and model.
Front or rear position.
Rim size.
Current tire dimensions.
Operating terrain.
Vehicle load.
Required quantity.
Target market.
OEM or private-label requirements.
If you are sourcing from HONOUR’s ATV tire range, include the required size and application in your first inquiry.
This allows the supplier to review more than the size code alone.
How HONOUR’s ATV Product Data Helps With Size Confirmation
HONOUR’s ATV product information includes fields for size, ply rating, standard rim, section width, overall diameter, maximum load, and pressure.
These fields are useful when checking whether a nominal sidewall marking matches the complete product specification.
For example, a quotation should not show only a short code such as 25x8-12. It should also confirm the related technical data for the selected product and application.
You can review the ATV product specifications from HONOUR before sending a request.
The exact specification should be confirmed for each product size. Do not assume that data from one size applies to another.
Common Mistakes When Reading ATV Tire Sizes
Treating Every Format The Same Way
25x8-12, 6-12, and 205/80-12 do not use identical notation.
Identify the format before interpreting the numbers.
Assuming The First Number Always Means Diameter
The first number often represents diameter in an x format. It may represent width in a two-part utility format.
The separator and complete marking provide important context.
Ignoring Rim Diameter
The final number identifies the rim diameter in many common formats.
A correct width and diameter cannot compensate for an incorrect rim size.
Treating Nominal Dimensions As Exact Measurements
The marked size is not always the final mounted measurement.
Request actual dimensions when clearance is limited.
Ordering By Size Only
Size is only one part of fitment.
Tread, load, construction, position, and application must also match.
Conclusion
Reading ATV tire size numbers starts with identifying the notation format.
In a common marking such as 25x8-12, the numbers usually describe approximate diameter, width, and rim diameter. In a marking such as 6-12, the first number generally describes width. Metric formats use a different system again.
Use the sidewall marking as a starting point. Then confirm actual dimensions, rim compatibility, front or rear position, load, construction, and application.
Need Help Confirming An ATV Tire Size?
FAQ
What Does 25x8-12 Mean On An ATV Tire?
It usually means approximately 25 inches in overall diameter, 8 inches in section width, and a 12-inch rim diameter.
What Does 6-12 Mean On An ATV Tire?
It generally means approximately 6 inches in section width and a 12-inch rim diameter. The overall diameter should be confirmed separately.
Does The First Number Always Mean Tire Diameter?
No. In an x format, the first number usually means overall diameter. In some two-part utility formats, it usually means section width.
Can I Install A Different Width ATV Tire?
Only after checking wheel compatibility, clearance, load, and vehicle requirements. A different width may change handling and create interference.
Is ATV Tire Size The Same As ATV Tyre Size?
Yes. “ATV tire size” and “ATV tyre size” describe the same measurement system. The spelling differs between American and British English.
Do ATV Tire Numbers Show Load Capacity?
Usually not. Load capacity is normally provided separately through the product specification, load index, or manufacturer data.
