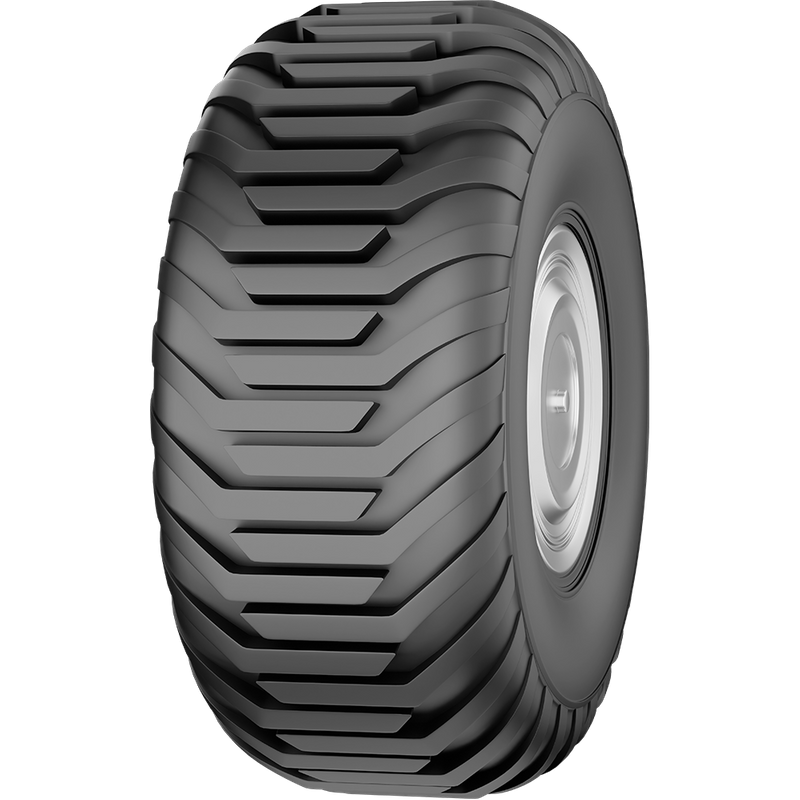

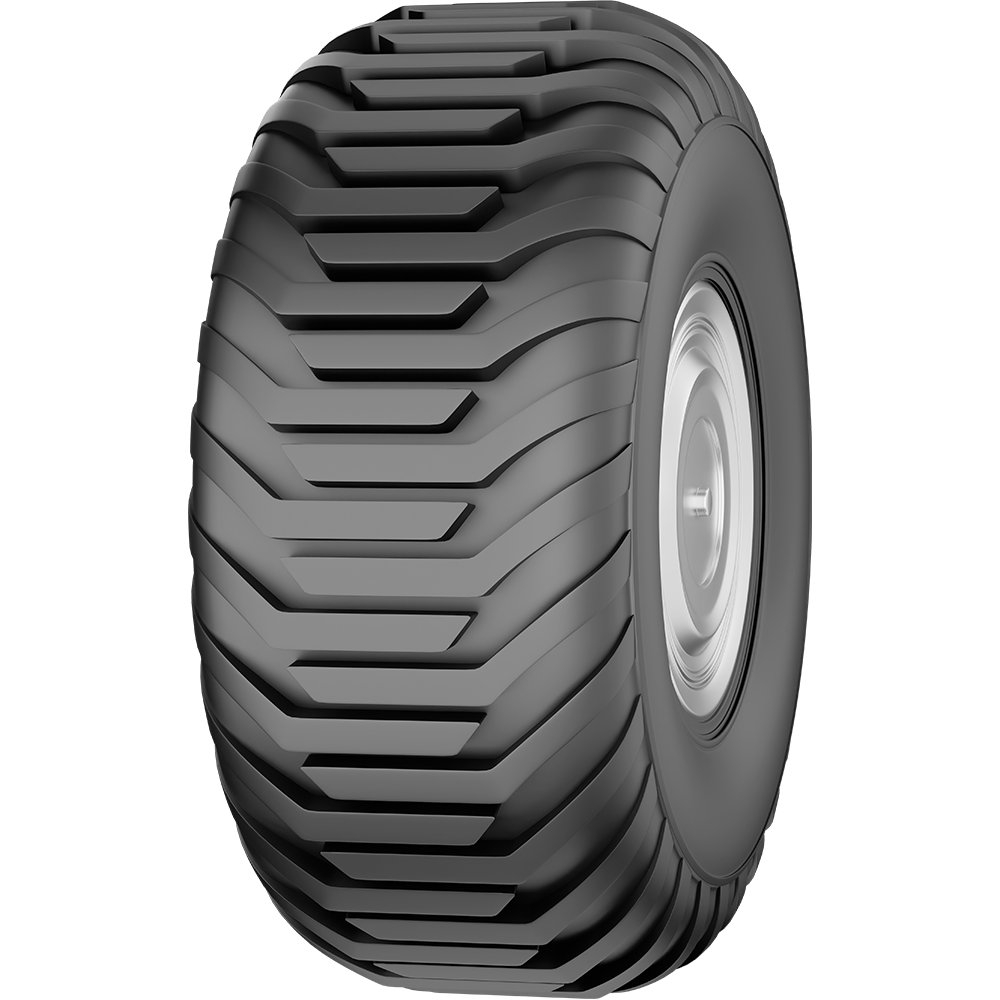

AG-IMP-1
Broad transverse lugs deliver excellent forward traction on soft earth.
Deeply channeled groove networks allow for efficient self-cleaning of mud.
A rounded balloon-style shoulder profile optimizes flotation across unstable surfaces.
Deeply channeled groove networks allow for efficient self-cleaning of mud.
A rounded balloon-style shoulder profile optimizes flotation across unstable surfaces.
-
Please contact us for more details.
| Quantity: | |
|---|---|
| SIZE | PR | Standard Rim | Section Width (mm) | Overall Diameter (mm) | Max. Load(kg) | Pressure (kPa) |
| 400/60-15.5 | 14 | 13 | 400 | 870 | 2900 | 360 |
| 500/50-17 | 14 | 16 | 500 | 950 | 3250 | 280 |
| 15.0/55-17 | 14 | 13 | 390 | 850 | 2575 | 280 |
| 19.0/45-17 | 14 | 16 | 490 | 860 | 2800 | 280 |
| 500/50-17 | 14 | 16 | 500 | 950 | 3250 | 280 |
| 15.5/60-18 | 8 | 13 | 400 | 960 | 2195 | 220 |
| 15.0/70-18 | 16 | 13 | 391 | 990 | 2925 | 350 |
| 445/55-19.5 | 14 | 14 | 460 | 980 | 3250 | 280 |
| 14.5-20 | 14 | 11 | 360 | 1110 | 3250 | 400 |
| 500/60-22.5 | 14 | 16 | 500 | 1170 | 6000 | 500 |
| 550/60-22.5 | 16 | 16 | 550 | 1238 | 5450 | 280 |
