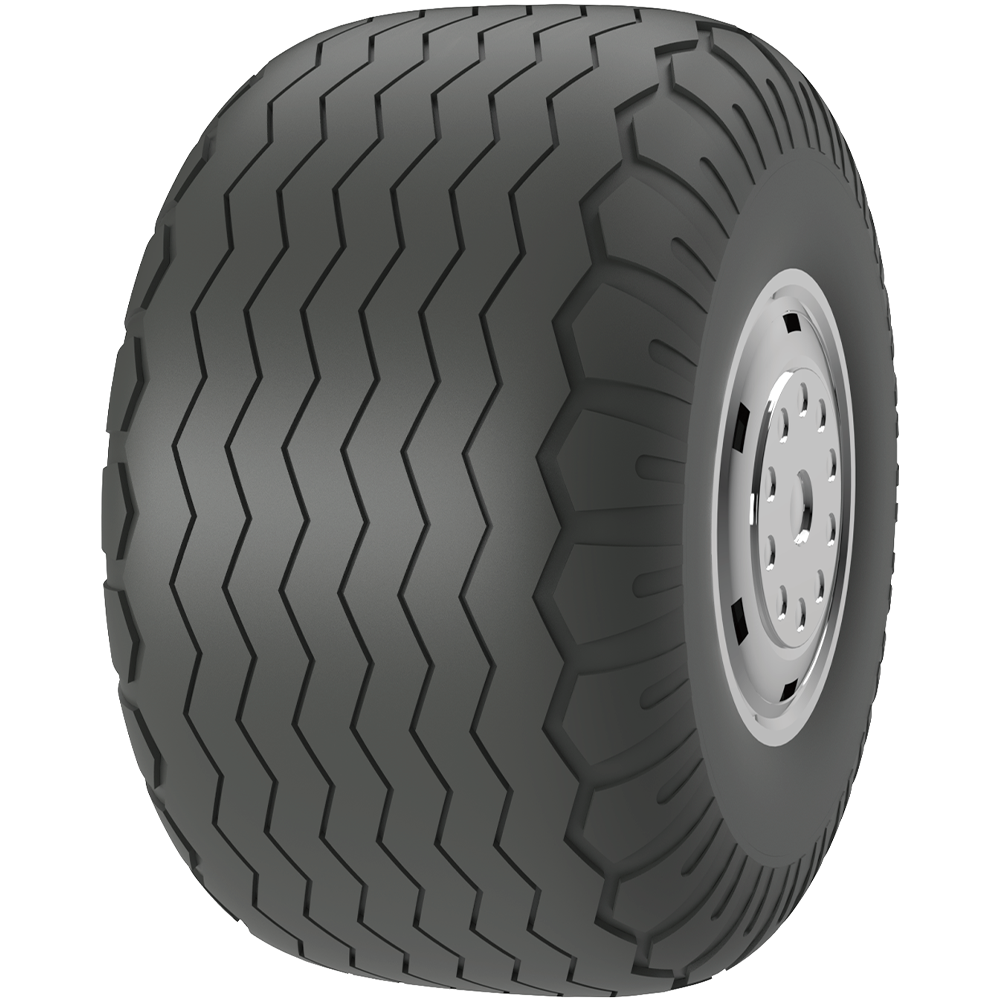

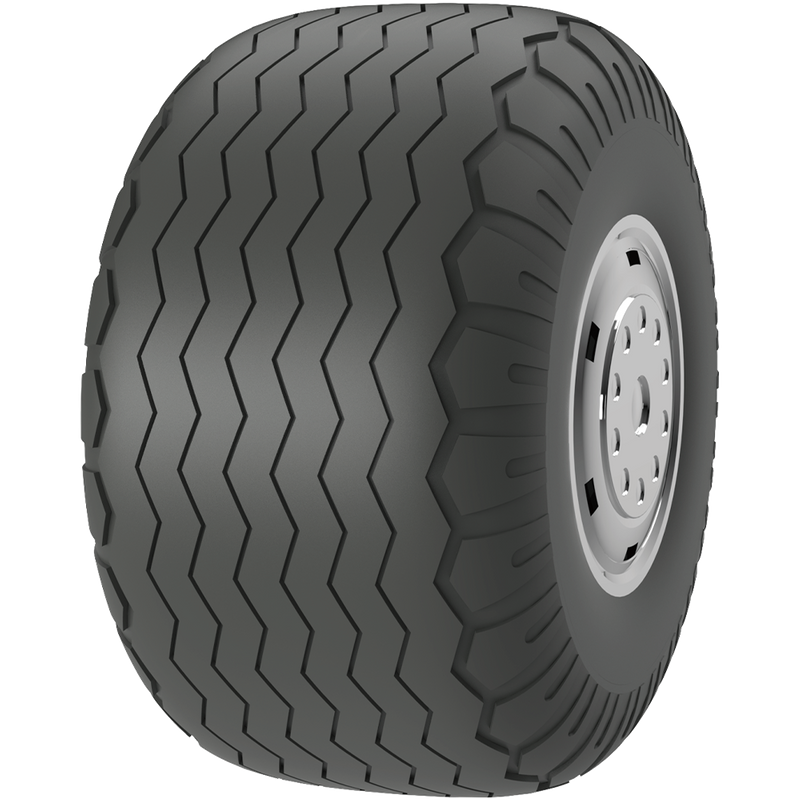

AG-IMP-2
Multiple continuous zigzag longitudinal ribs maximize surface contact for steering stability.
Deep wavy groove channels efficiently route water and soft soil away from the crown.
Scalloped outer shoulder blocks ensure optimal flotation and prevent uneven tread wear.
Deep wavy groove channels efficiently route water and soft soil away from the crown.
Scalloped outer shoulder blocks ensure optimal flotation and prevent uneven tread wear.
-
Please contact us for more details.
| Quantity: | |
|---|---|
| SIZE | PR | Standard Rim | Section Width (mm) | Overall Diameter (mm) | Max. Load(kg) | Pressure (kPa) |
| 400/60-15.5 | 14 | 13 | 400 | 870 | 2900 | 360 |
| 500/50-17 | 14 | 16 | 500 | 950 | 3250 | 280 |
| 15.0/55-17 | 14 | 13 | 390 | 850 | 2575 | 280 |
| 19.0/45-17 | 14 | 16 | 490 | 860 | 2800 | 280 |
| 500/50-17 | 14 | 16 | 500 | 950 | 3250 | 280 |
| 15.5/60-18 | 8 | 13 | 400 | 960 | 2195 | 220 |
| 15.0/70-18 | 16 | 13 | 391 | 990 | 2925 | 350 |
| 445/55-19.5 | 14 | 14 | 460 | 980 | 3250 | 280 |
| 14.5-20 | 14 | 11 | 360 | 1110 | 3250 | 400 |
| 500/60-22.5 | 14 | 16 | 500 | 1170 | 6000 | 500 |
| 550/60-22.5 | 16 | 16 | 550 | 1238 | 5450 | 280 |
