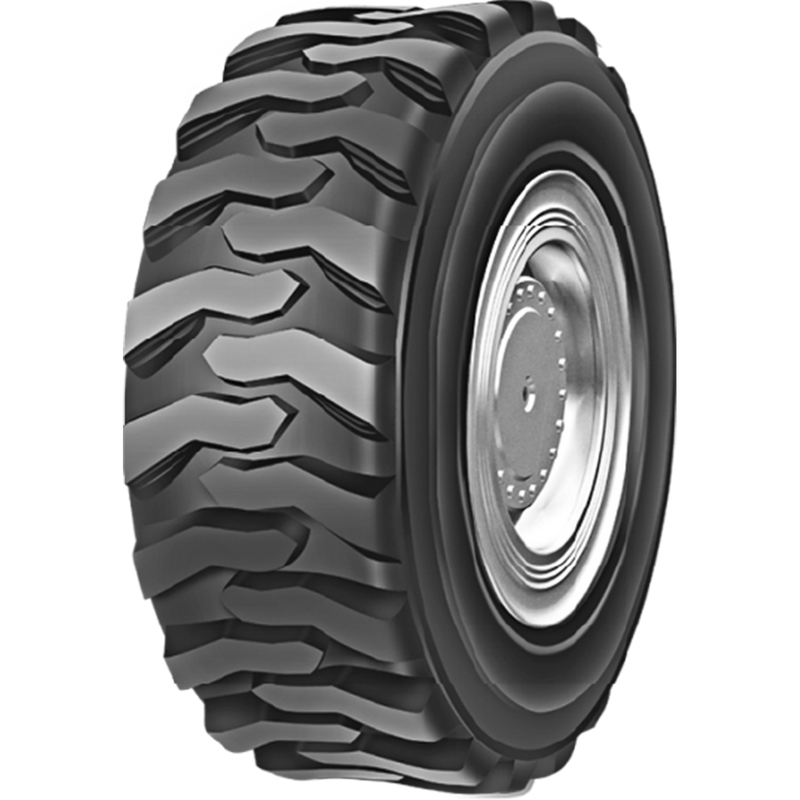

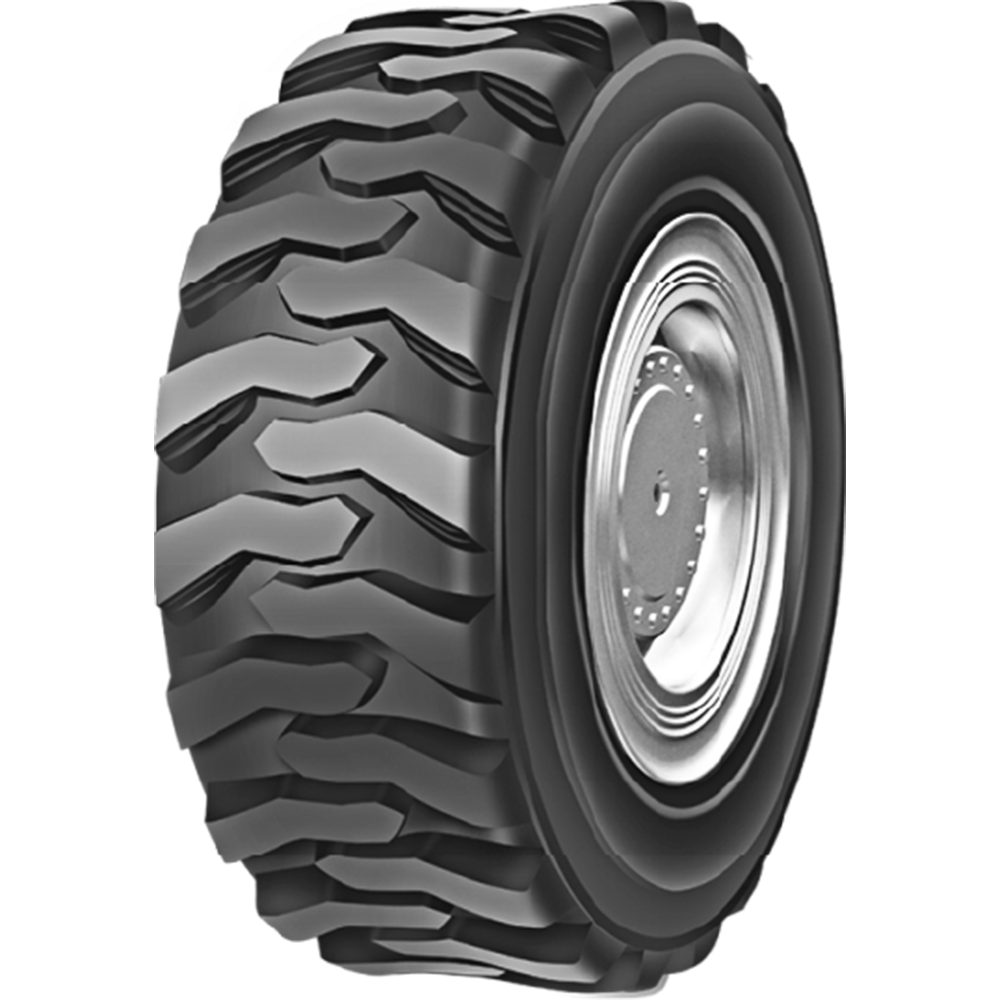

SKS-1
Deep interlocking wavy tread bars deliver robust multi-directional traction on soft earth.
Sinuous transverse groove channels efficiently expel thick mud and loose soil outward.
Staggered notched shoulder blocks provide extra biting edges for stable side-slope operation.
Sinuous transverse groove channels efficiently expel thick mud and loose soil outward.
Staggered notched shoulder blocks provide extra biting edges for stable side-slope operation.
-
Please contact us for more details.
| Quantity: | |
|---|---|
| SIZE | PR | Standard Rim | Section Width (mm) | Overall Diameter (mm) | Max. Load(kg) | Pressure (kPa) |
| 10-16.5 | 10 | 8.25 | 264 | 773 | 2135 | 520 |
| 12-16.5 | 12 | 9.75 | 307 | 831 | 2865 | 550 |
| 14-17.5 | 14 | 10.5 | 349 | 921 | 3875 | 550 |
| 15-19.5 | 14 | 11.75 | 389 | 1019 | 4565 | 485 |
| 10R16.5 | 10 | 8.25 | 264 | 773 | 2135 | 520 |
| 12R16.5 | 12 | 9.75 | 307 | 831 | 2865 | 550 |
| 11L-16 | 12 | 8 | 279 | 838 | 1250 | 440 |
| 23x8.5-12 | 6 | 7 | 213 | 574 | 820 | 340 |
| 23x8.5-15 | 10 | 7.00I | 225 | 645 | 960 | 400 |
| 27x8.5-15 | 10 | 7 | 213 | 678 | 825 | 410 |
| 27x10.5-15 | 10 | 8.5 | 259 | 691 | 865 | 410 |
| 31X15.5-15 | 10 | 13LB | 391 | 792 | 1450 | 410 |
| 12.5/20-70 | 8 | 10 | 316 | 848 | 1645 | 520 |
| 17.5/65-20 | 14 | 14 | 448 | 1094 | 3195 | 240 |
